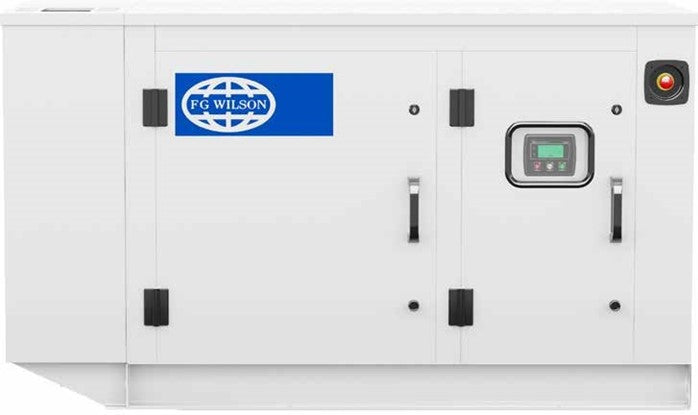

18kVA Three Phase Enclosed Canopy Diesel Generator FG Wilson P18-6
18kVA Three Phase Enclosed Canopy Diesel Generator FG Wilson P18-6
Product Specifications
| Minimum Rating | 16.5 kVA / 13.2 kW |
| Maximum Rating | 22 kVA / 17.6 kW |
| Emissions/Fuel Strategy | EUIIIa Emissions Compliant |
| 50 Hz Prime | 16.5 kVA / 13.2 kW |
| 50 Hz Standby | 18 kVA / 14.4 kW |
Engine Specifications
| Engine Model | Perkins® 404D-22G1 |
| Bore | 84 mm (3.3 in) |
| Stroke | 100 mm (3.9 in) |
| Governor Type | Mechanical |
| Displacement | 2.2l (135.2 cu. in) |
| Compression Ratio | 23.3:1 |
| 50 Hz Prime Rating |
These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. |
| 50 Hz Standby Rating | Standard reference conditions 25degC (77degF) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2. |
Dimensions and Weights
Length mm 1755
Width mm 935
Height mm 1200
Weight (Wet) 516kg
Low stock: 3 left
Contact Us For Price
