FG Wilson

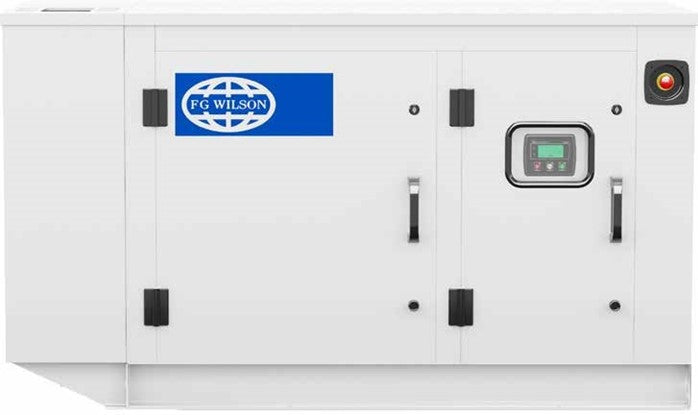

22kVA Three Phase Enclosed Canopy Diesel Generator FG Wilson P22-6

22kVA Three Phase Enclosed Canopy Diesel Generator FG Wilson P22-6

Product Specifications

Minimum Rating 20 kVA / 16 kW
Maximum Rating 25 kVA / 20 kW
Emissions/Fuel Strategy EUIIIa Emissions Compliant
50 Hz Prime 20 kVA / 16 kW
50 Hz Standby 22 kVA / 17.6 kW

Engine Specifications

Engine Model Perkins® 404D-22G
Bore 84 mm (3.3 in)
Stroke 100 mm (3.9 in)
Governor Type Mechanical
Displacement 2.2l (135.2 cu. in)
Compression Ratio 13.3:1
50 Hz Prime Rating

These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

50 Hz Standby Rating Standard reference conditions 25degC (77degF) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.



Dimensions and Weights

Length mm 1755

Width mm 935

Height mm 1200

Weight (Wet) 529kg

22kVA Specs

Canopy Specs

FG Wilson Product Ratings Guide
